SP8000 automatic numerical control type Glue Dispenser

darthub

Fully automatic machine SP8000 numerical control point glue A TECHNICAL specifications of the TECHNICAL DATA Power supply: AC 220 V plus or minus 10% / frequency 50 Hz AC 110 V plus or minus 10% / 60 Hz (internal conversion) Power consumption: < 12 W

Download Technology Brochure


Products Details

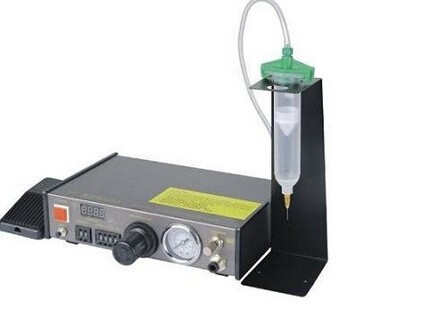

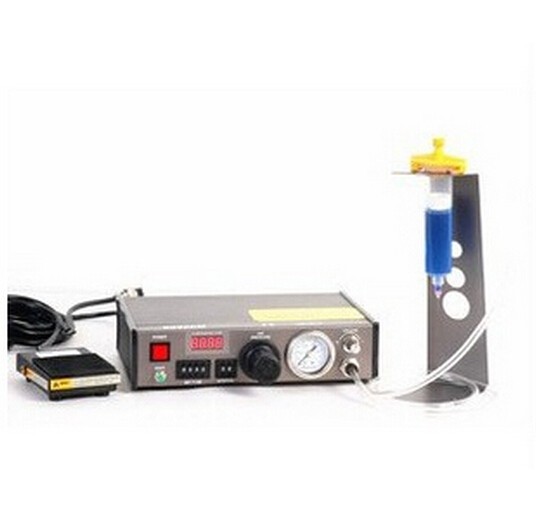

SP8000 glue machine SP-8000 automatic numerical control type glue machine

Fully automatic machine SP8000 numerical control point glue

A TECHNICAL specifications of the TECHNICAL DATA


*Power supply: AC 220 V plus or minus 10% / frequency 50 Hz AC 110 V plus or minus 10% / 60 Hz (internal conversion)
*Power consumption: < 12 W
*Air source: the biggest 0.99 MPa (clean no lubrication of dry air)
*Spit out the pressure to adjust scope: 0.05 MPa--0.99 MPa
*Function mode: manual mode and 16 kinds of free set mode
*Spit out the time to adjust: automatic timing 0.01 S-out 99.99 S / 0.001 S to 9.999 S two groups
*Spit out the time display: four LED display to fine-tune spit out the quantity
*Spit out the interval time to adjust: 0.1-9.9 S
*Vacuum back to suck function: adjustable negative pressure control to 600 millimeters of mercury
*Repeat precision and spit out the frequency: precision: + 0.01% frequency: > 800 / cent
*The minimum amount out: 0.0001 ml
*Overall size: 235 mmx225mmx63mm

Packaging Details


Package Weight :3.500kg (7.72lb.) /set
Package Size: 23cm x 29cm x 10cm (9.06in x 11.42in x 3.94in)
